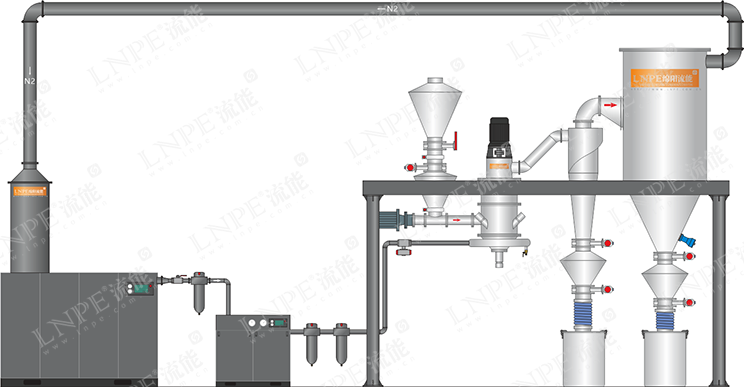

Working Principle:

LNJST series inert gas protection system is a closed ultra-fine grinding system and classification system developed by our company for the grinding needs of special materials such as flammable, explosive, oxidizing, and hygroscopic materials. It utilizes inert gas (nitrogen, argon, carbon dioxide, etc.) for cyclic protection. Due to the high cost of inert gases, closed circulation systems are usually used, and strict airtightness separation devices are used at the inlet and outlet.

Feature:

1. Materials collision each other without contamination, effective for Mohs 1-10 hard material;

2. Widely used inflammable, explosive and easily oxidative material;

3. Depending on the requirements of process and material properties control the purity of inert gas, the recycling of inert gas causes little loss;

4. Controlling the oxygen content on specific requirement, it can be achieved to below 1PPM;

5. Self-equipped oxygen content detection system to reach the pressure balance and add Nitrogen automatically;

6. Optimization classification impeller structure, completely and stable flow effective for precision classifying;

7. Particle size can be adjusted between 2~74um by original technology, the finest particle can up to submicron;

8. Collecting efficiency can be up to 99.99%; seal negative pressure operation without contamination;

9. Emergency filter installed behind of dust collector to prevent powder into compressor;

10. Fully automatic PLC+touch screen automatic control system, which can achieve one click start stop, simple and convenient operation, and can be connected with DCS system to achieve remote control.
