Working Principle:

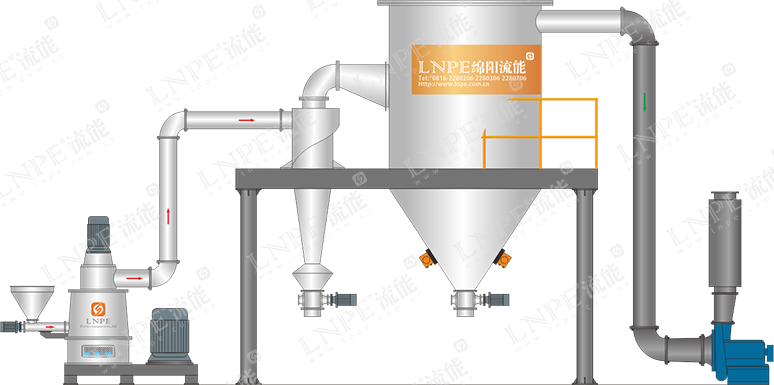

Impact Mill is a high speed impact mill to perform ultra-fine milling by using the high-speed rotating hammer to grind materials and squeezing and grinding between the hammer and the lining plate. The ground materials will be brought to high-efficient turbine classifier, separate the fine powder that meets the particle size requirements, and return the coarse particles that do not meet the particle size requirements to continue milling.

LNI Grade Impact Mill is depending on materials’ characters( such as adhesion, fibrous etc) optimizes hammer, gear ring, classifier. It is the best solution of various powder industries with high efficiency milling, lower energy consumption.

Feature:

1.High fineness, narrow particle size distribution without oversize, and particle size can be controlled between 100~1500 mesh;

2.Application with air-cooled design with large air flow makes it possible to process heat sensitive materials in low temperature condition;

3.Grinding hammer/gear ring is made from super-hard alloy, better wear-resisting Performance;

4.Development of wet, low and high temperature impact mill, greatly increased processing fields.

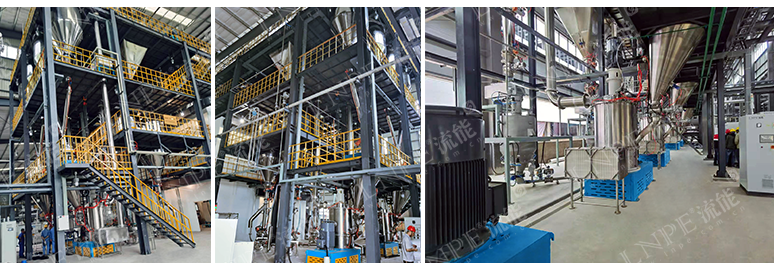

Application Scene:
